MEISUPI III CAMERA
Manufacturer : Tougo-Do Optical
Togodo optical co.ltd
Togodo sangyo ltd.
Dates : 1937

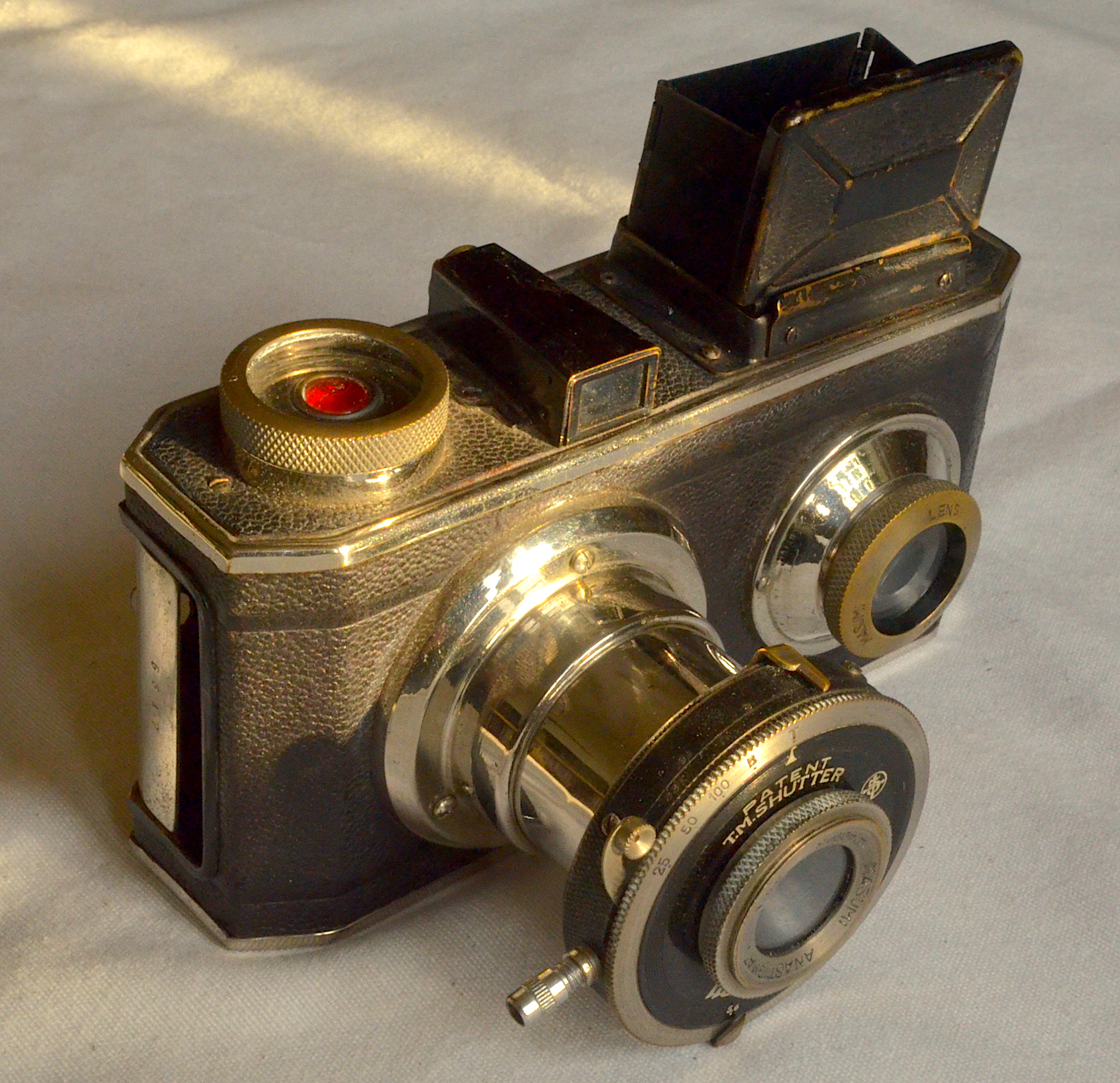

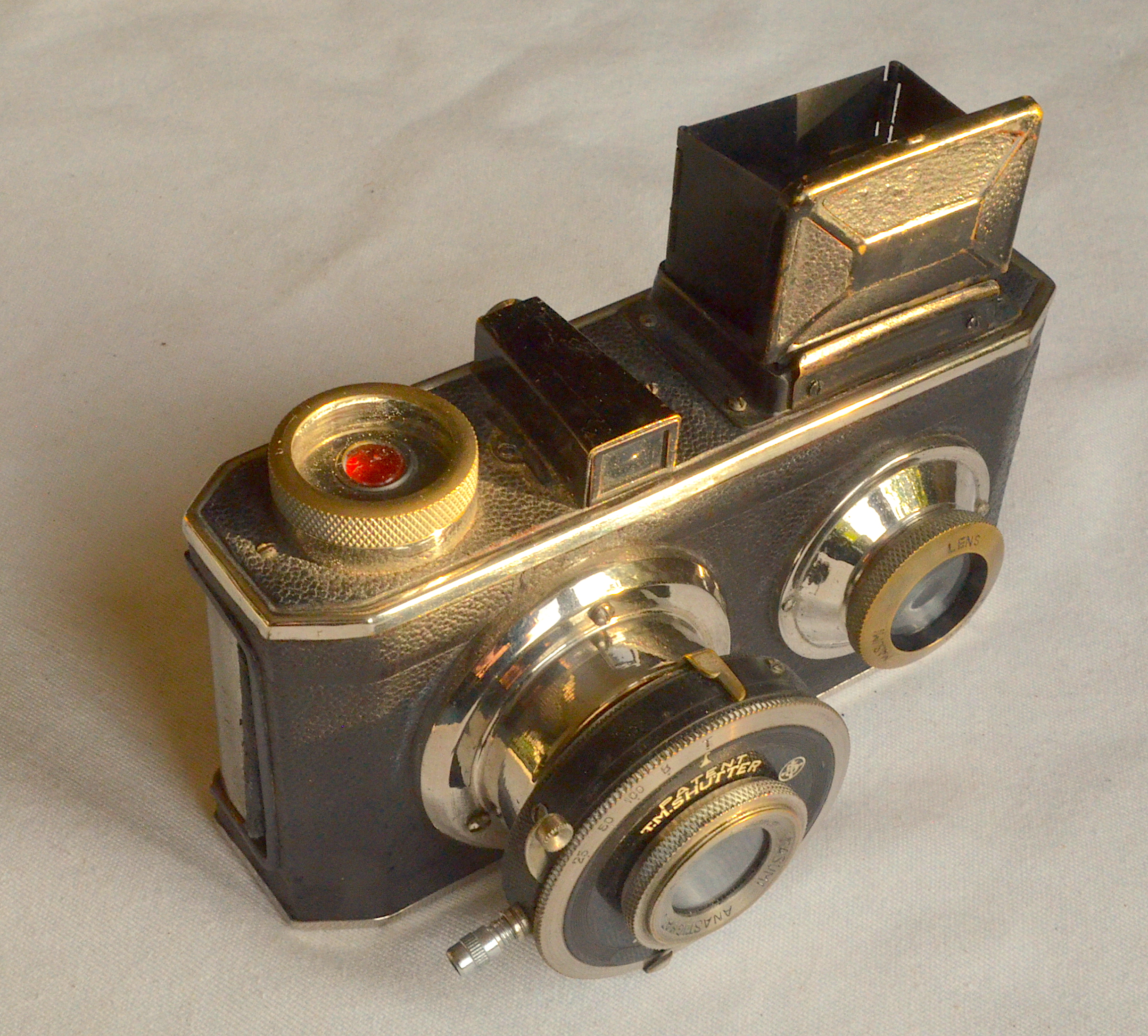

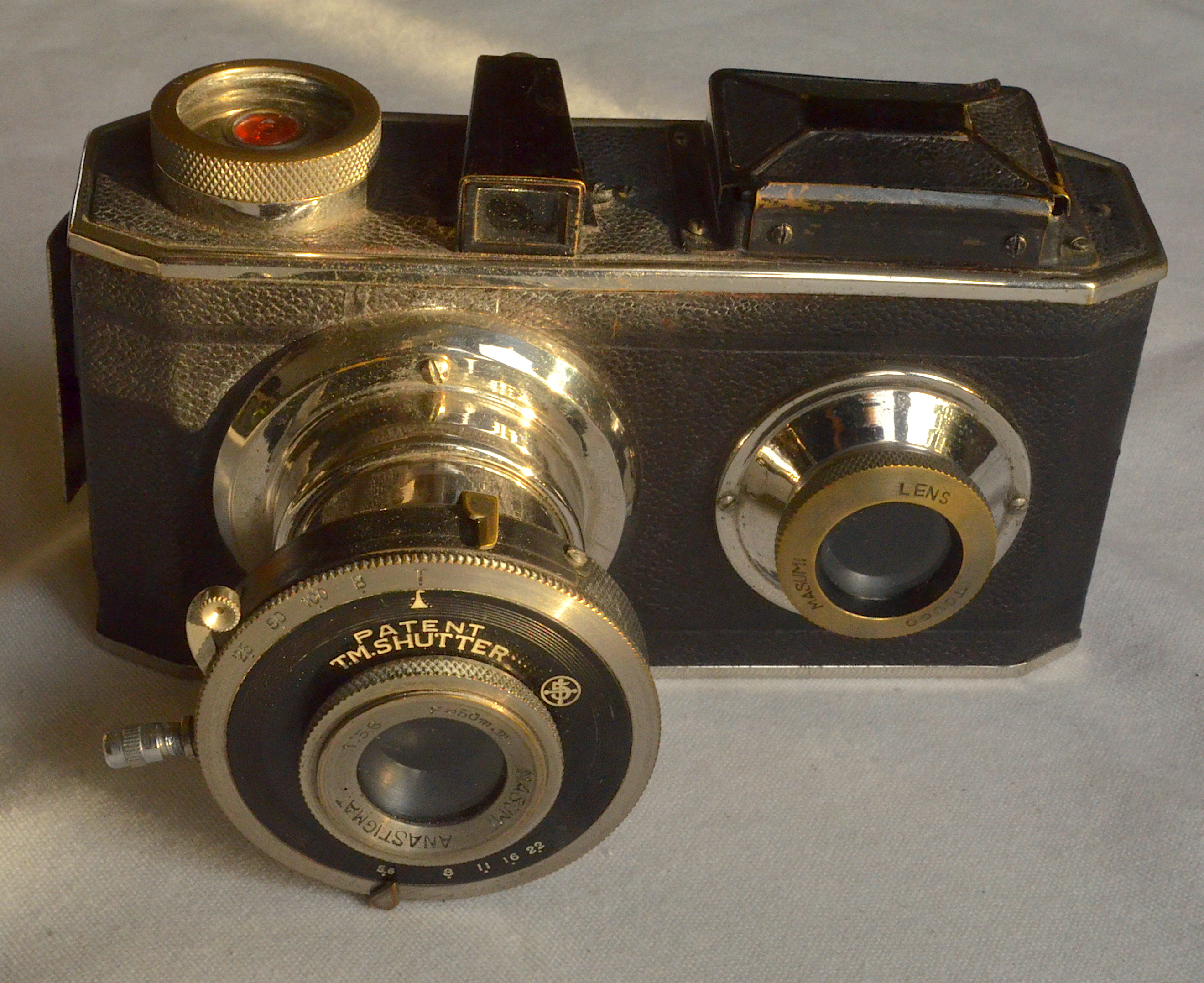

Side by side twin lens reflex for 3x4cm on sheet film.
No Need darkroom film-packed system.
Image size 28×40 mm
Lens : Masumi Anastigmat fixed focus lens 1: 5.6 f=50mm.

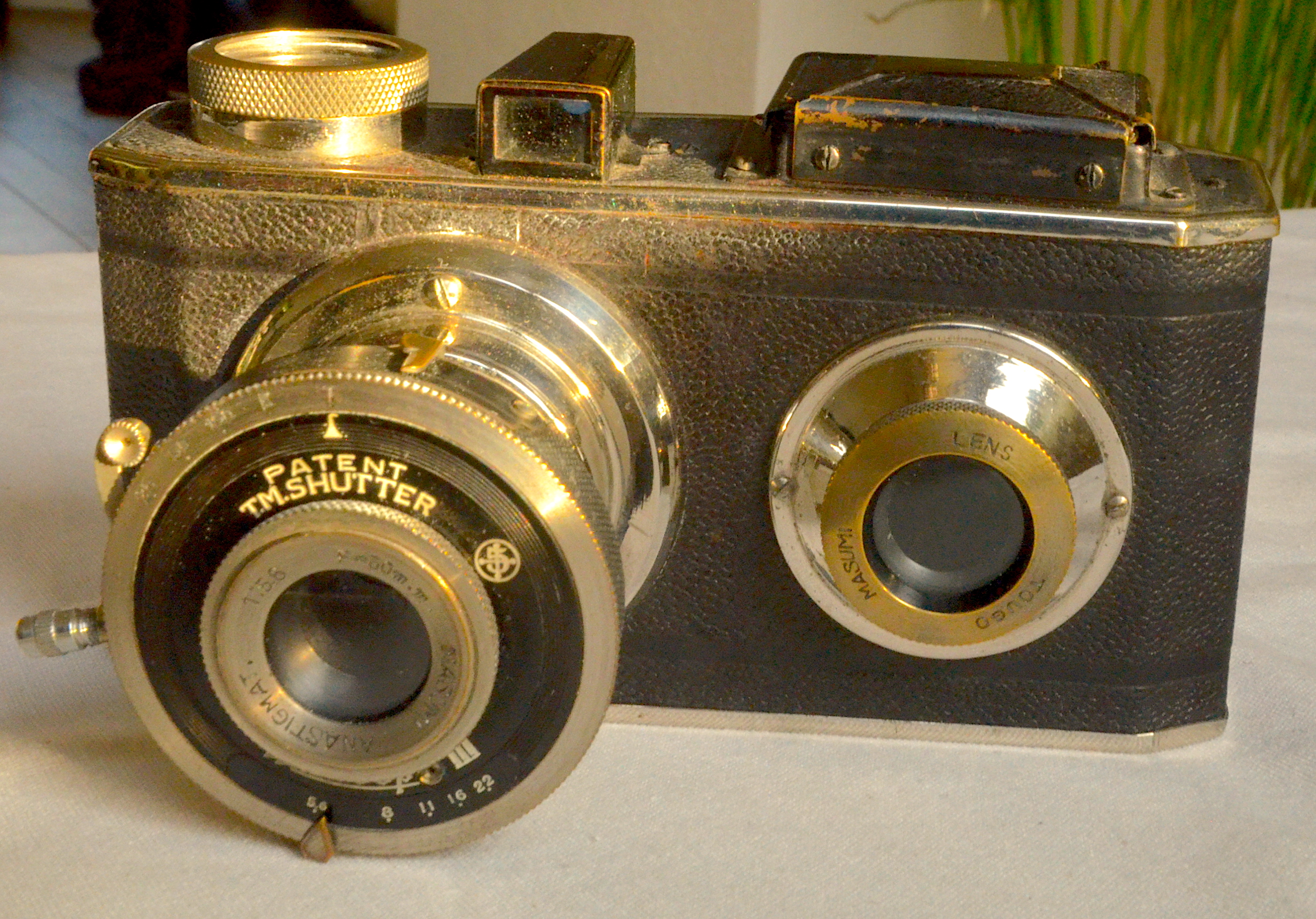

Shutter : Patent TM shutter marked B-1/25-sec -1/100 sec.
Image size 28mmx40mm on daylight loading and developingprint –stock in light-proof sheats.

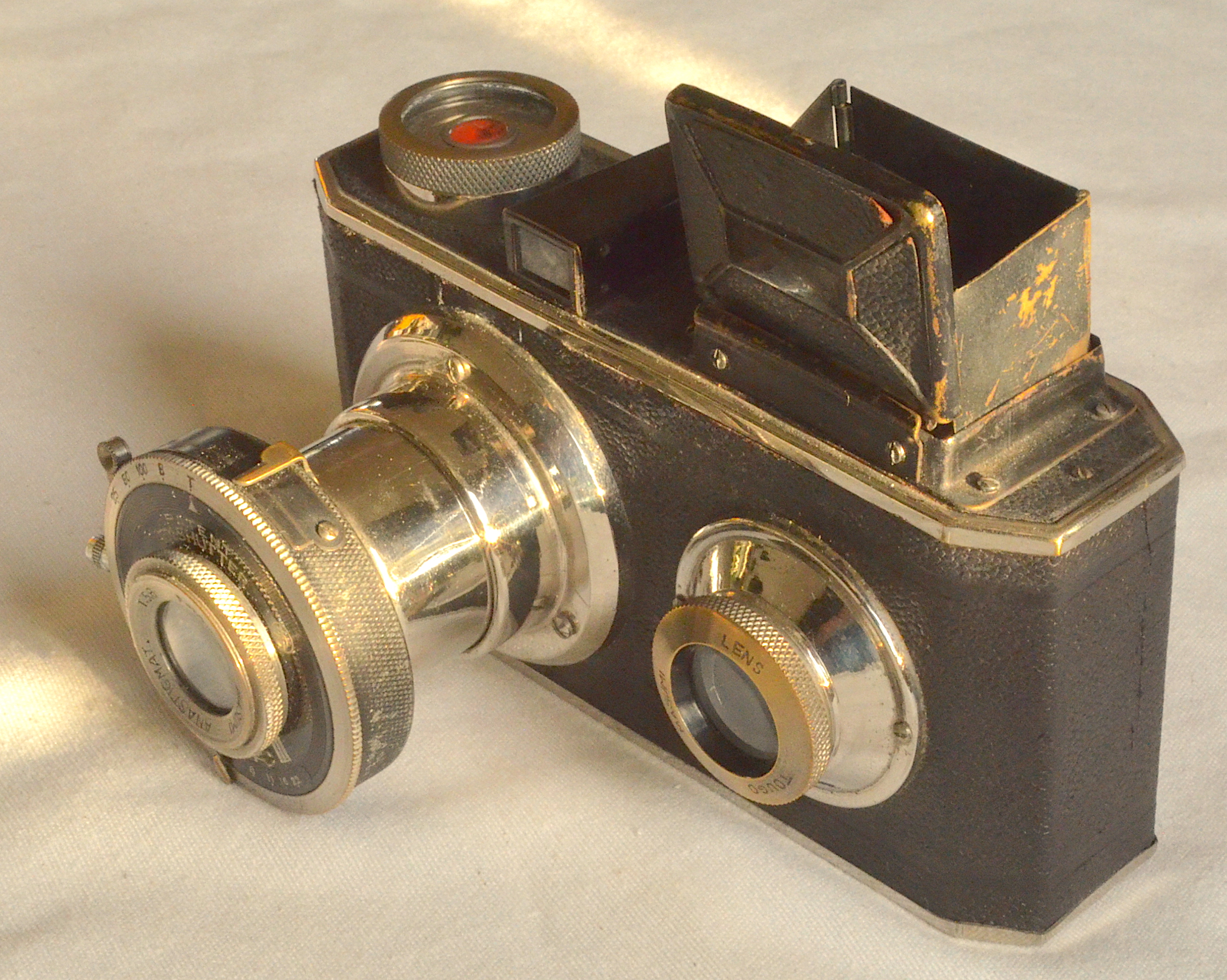

Reflex and eye level

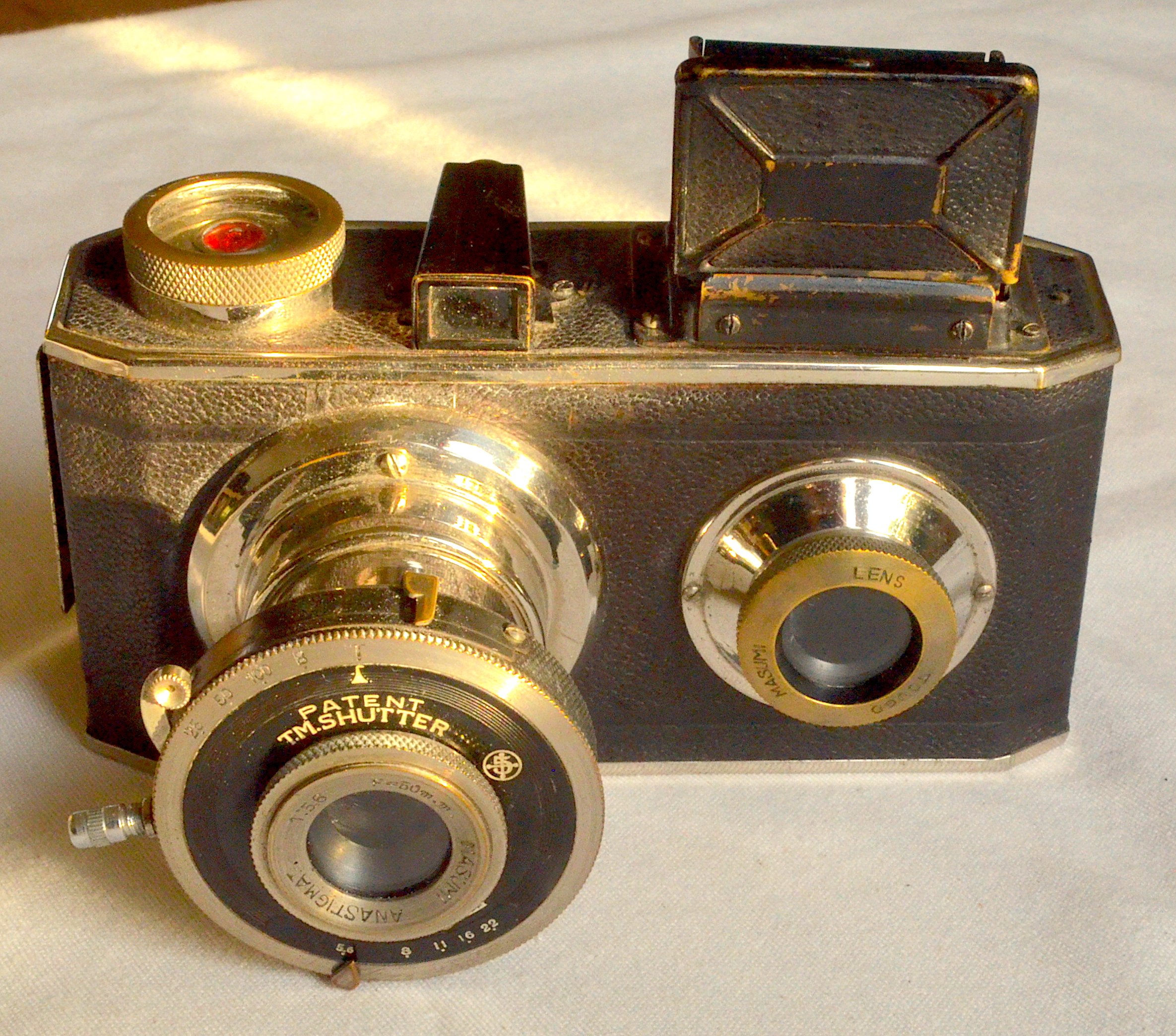

On the No III the reflex finder has “lens tougo Masumi “ on the lensring.

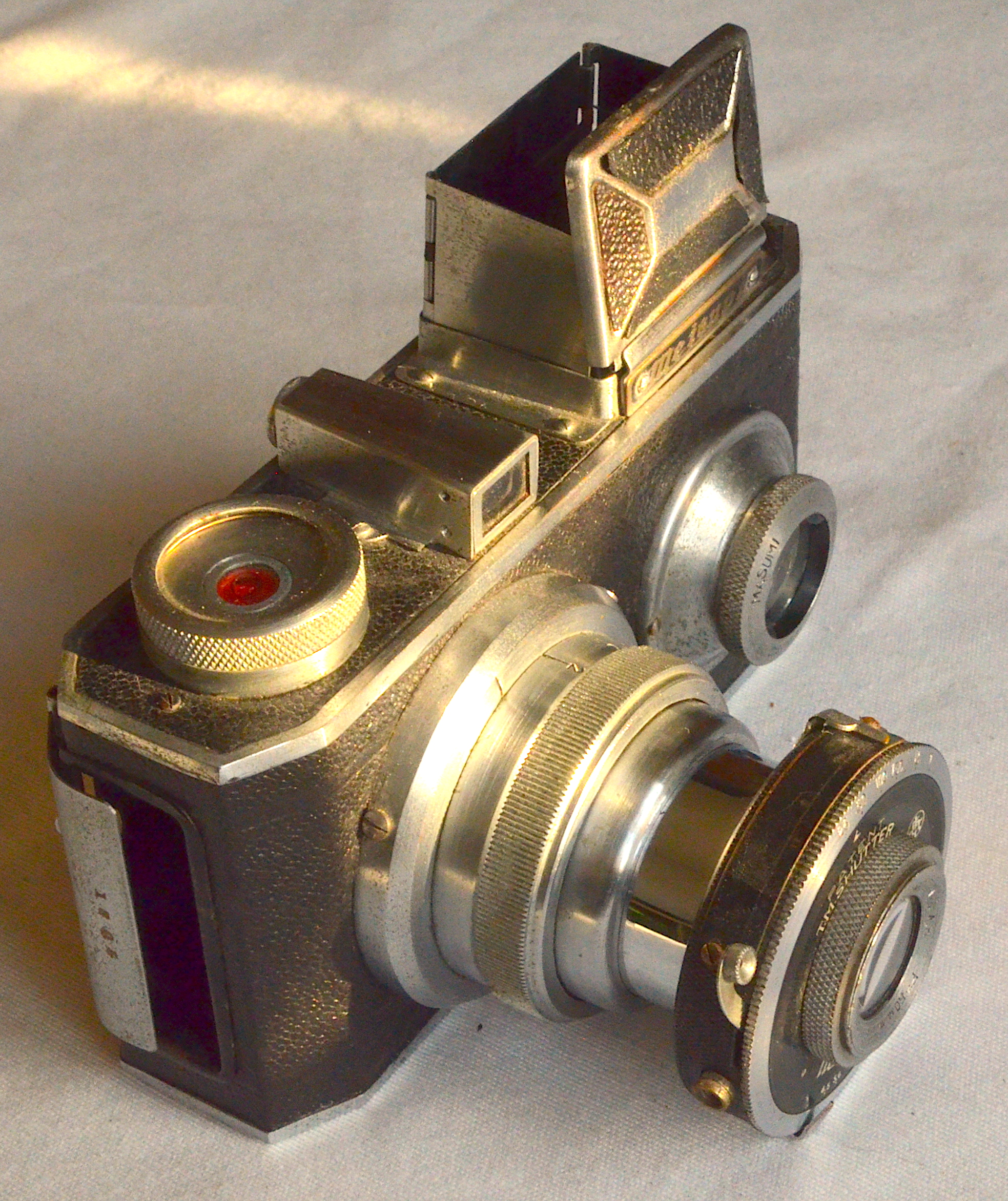

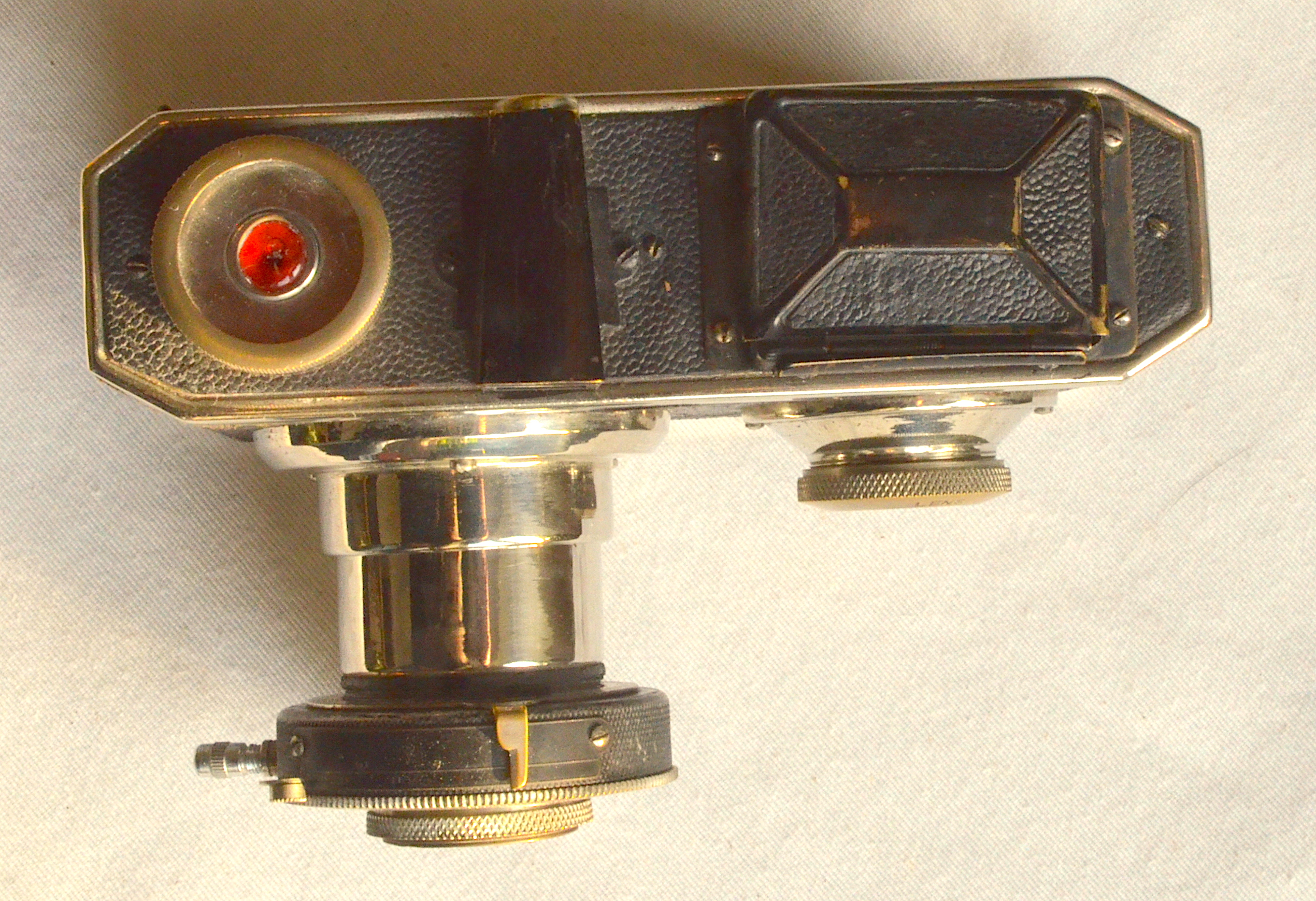

Close up lens was screwed on a spirit level on the top plate ,ready to put on the lens .

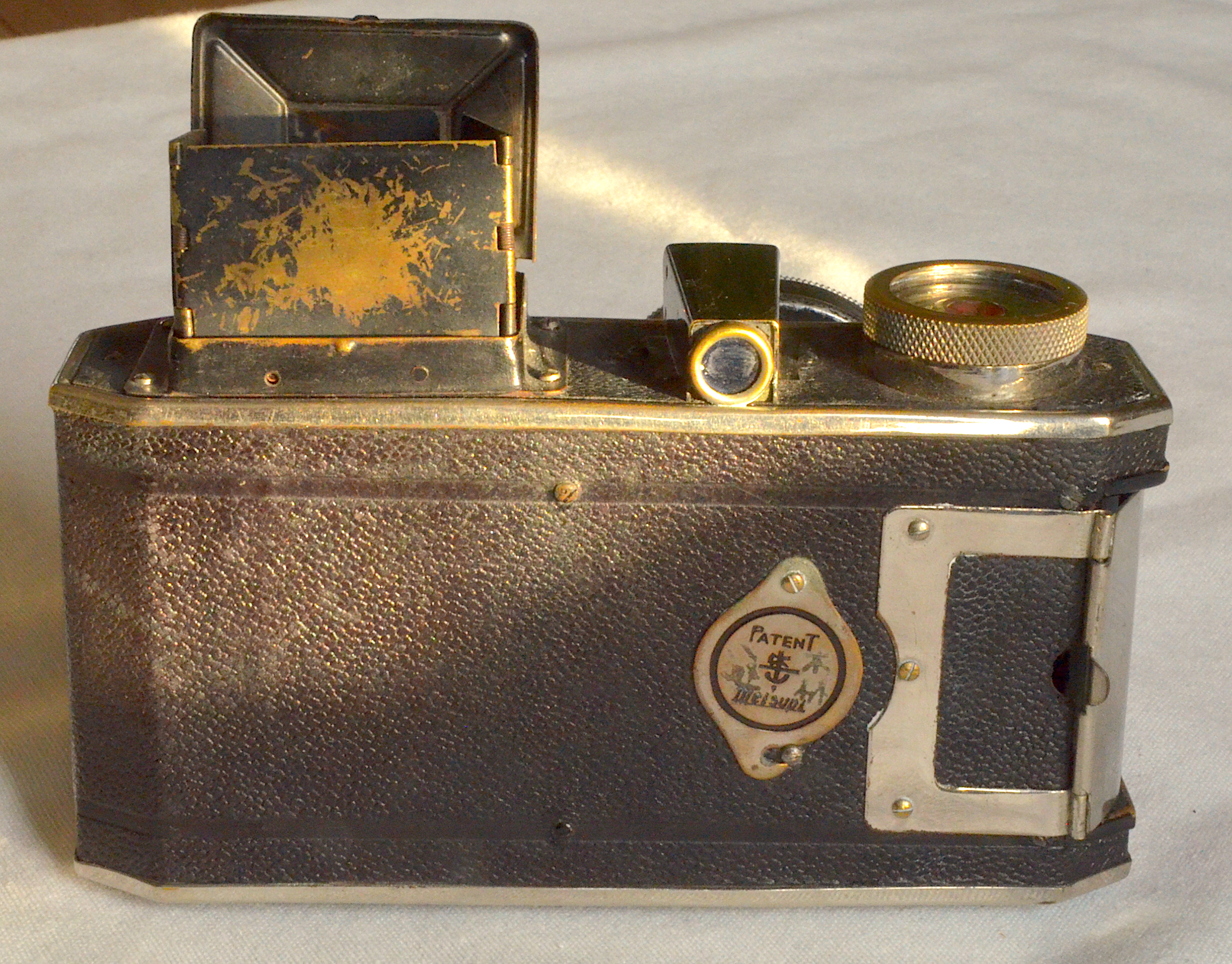

At the back there is a pivoting cover engraved Patent Meisupi with the Tougodo Logo ,covering the red window , whose purpose is unknown.

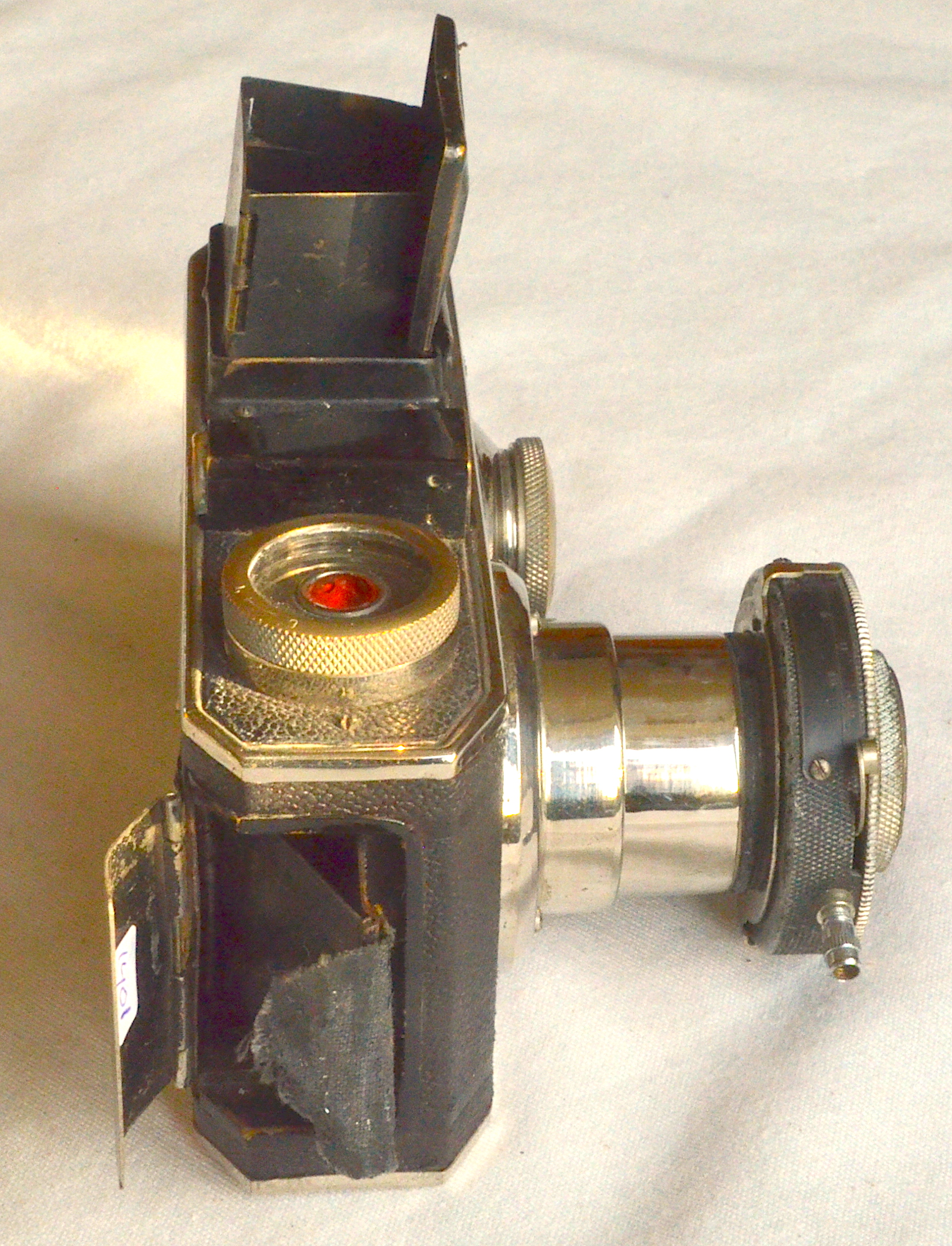

Number on the film chamber door 5817.
