Manufacturer: Tougo-Do Optical
Togodo optical
Togodo sangyo ltd.
Dates: +/- 1940
Side by side twin lens reflex for 16 3x4cm exposures per roll on 35 unperforated film.
Lens: M.K. Anastigmat 1: 3,5   f=50mm.No 1317
The lens has a helical unit focusing down to 2 Feet.
Viewing lens: 1:3,8 f=50mm M.K Anastigmat
Shutter: Patent MT Shutter T, B 1/5-1/200sec.

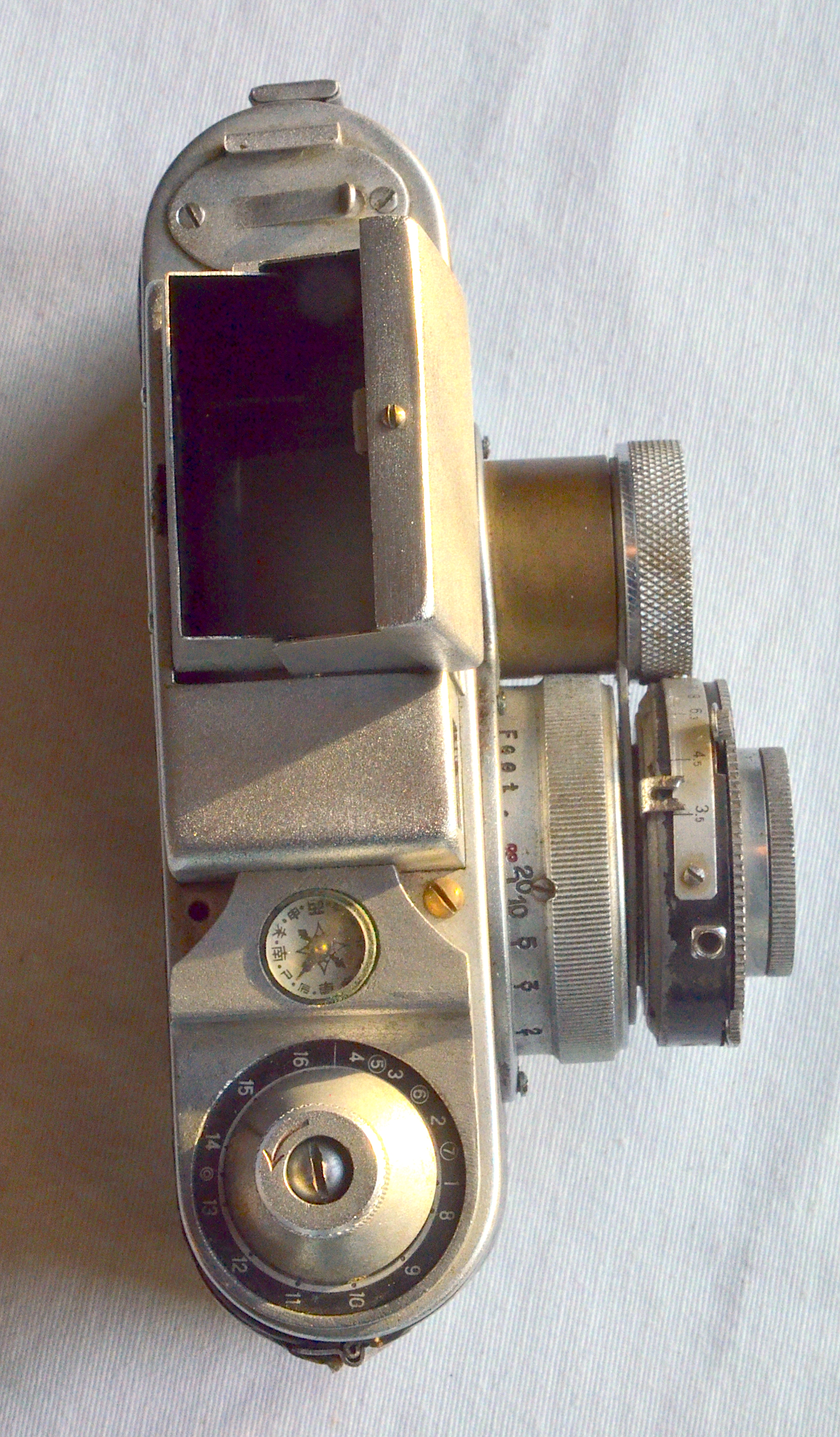

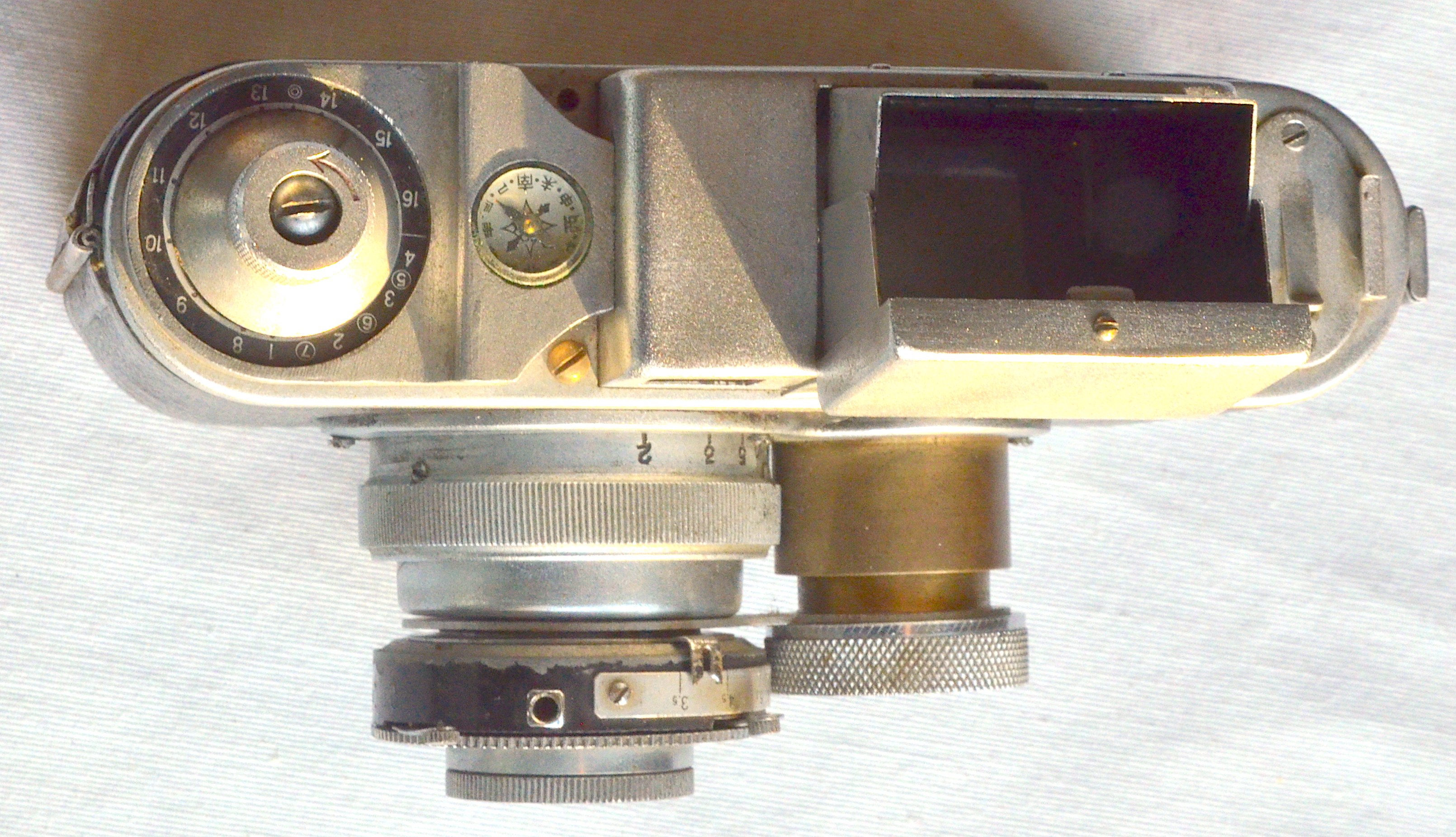

On the top plate left is accessory shoe.
At the right side there is a frame counter (counts to sixteen in two counters).
This counter is integrated in the Aluminum raised superstructure on the topcover of the camera.
And where a compass is integrated.

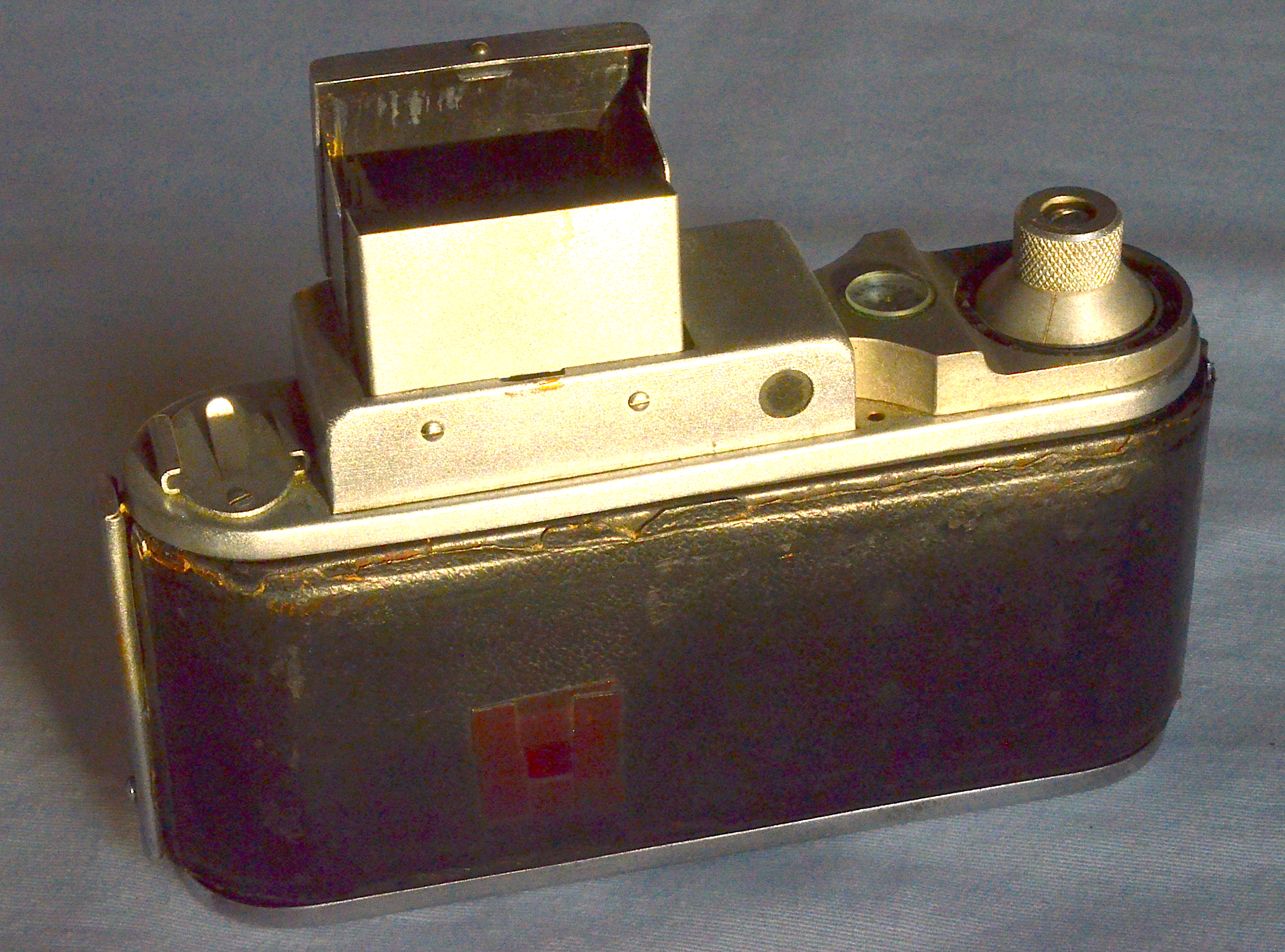

At the back there is a red window.
On the left side is a lid to open en close the back, there is a Number on , this camera 7754.

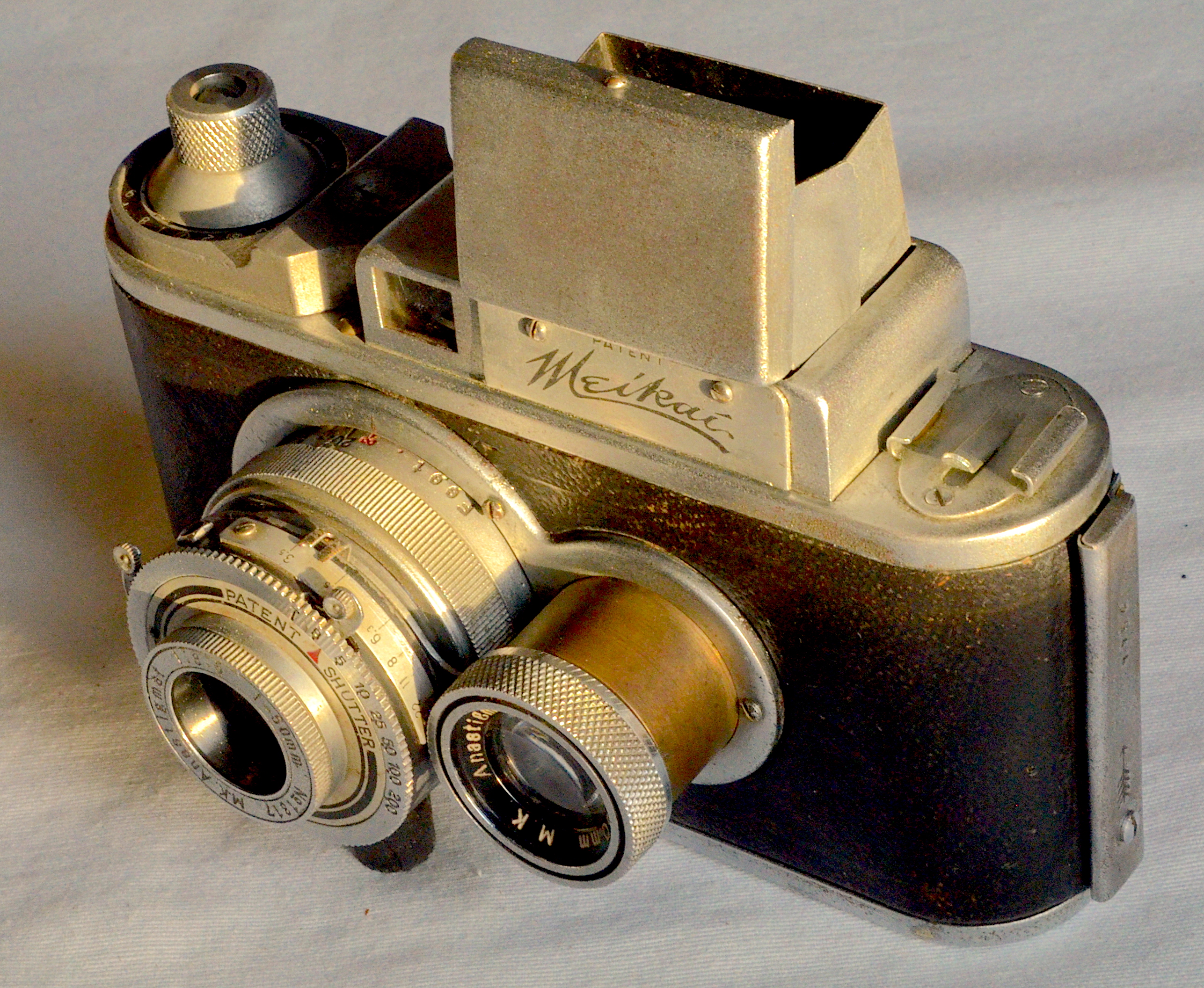

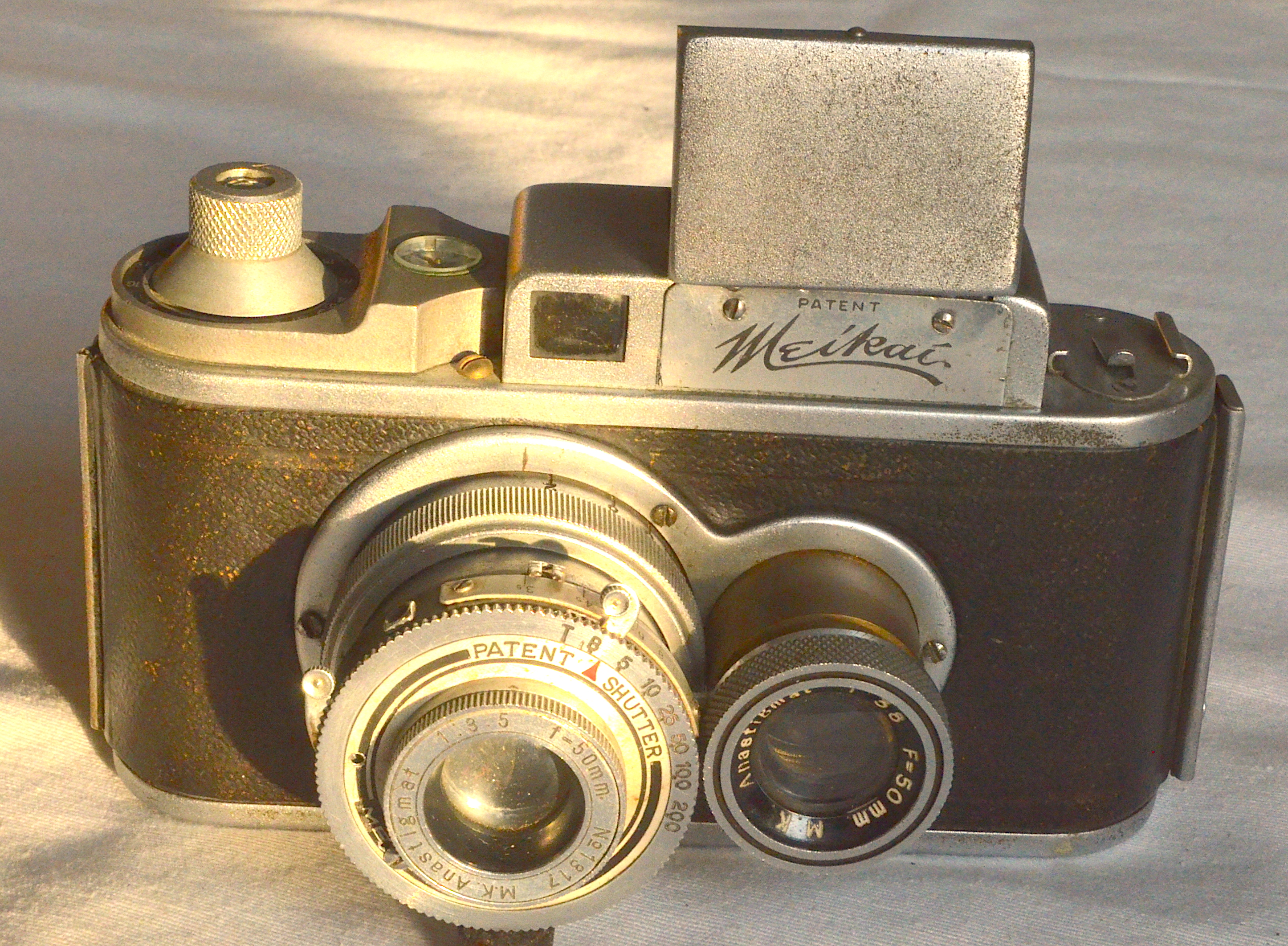

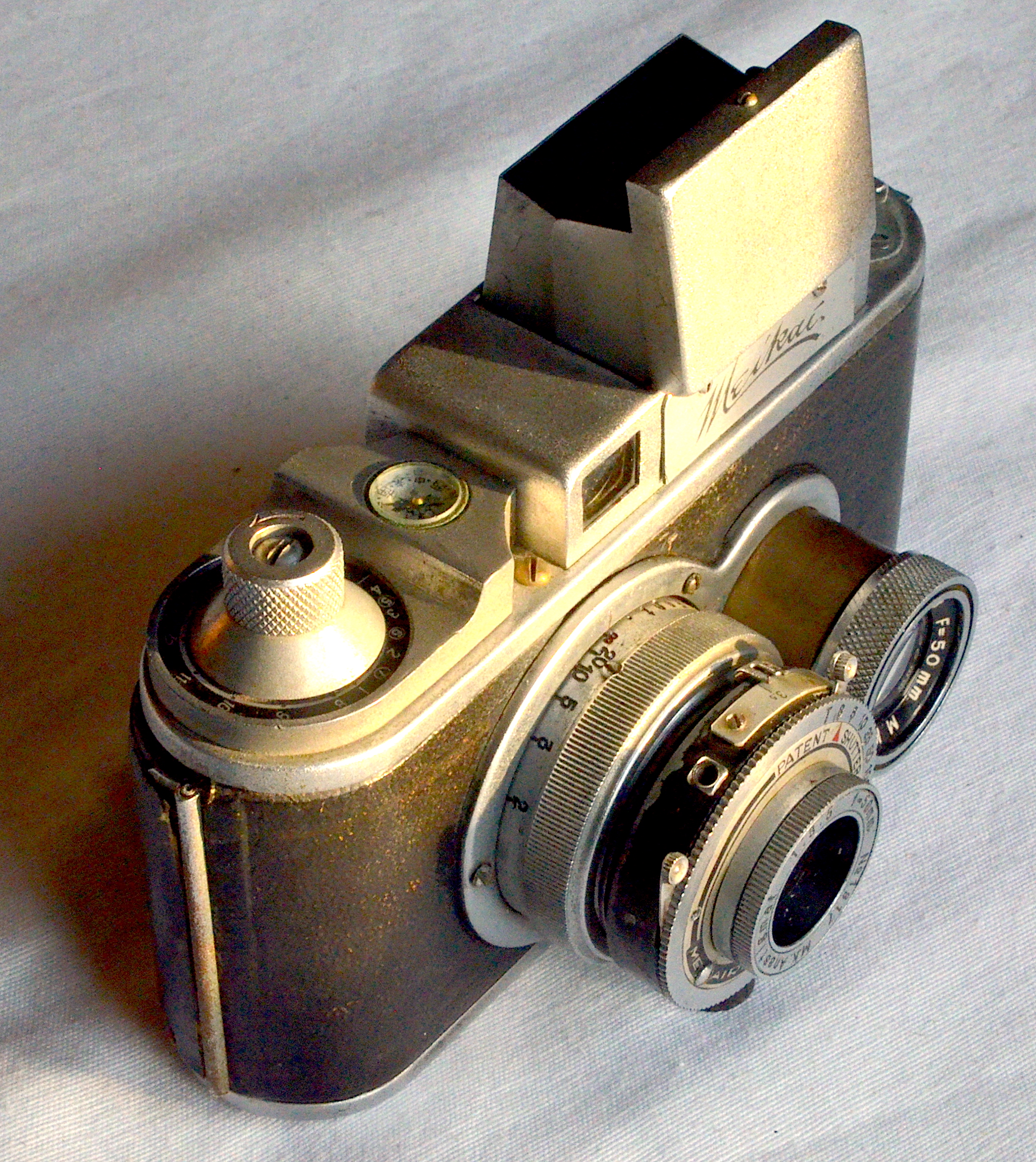

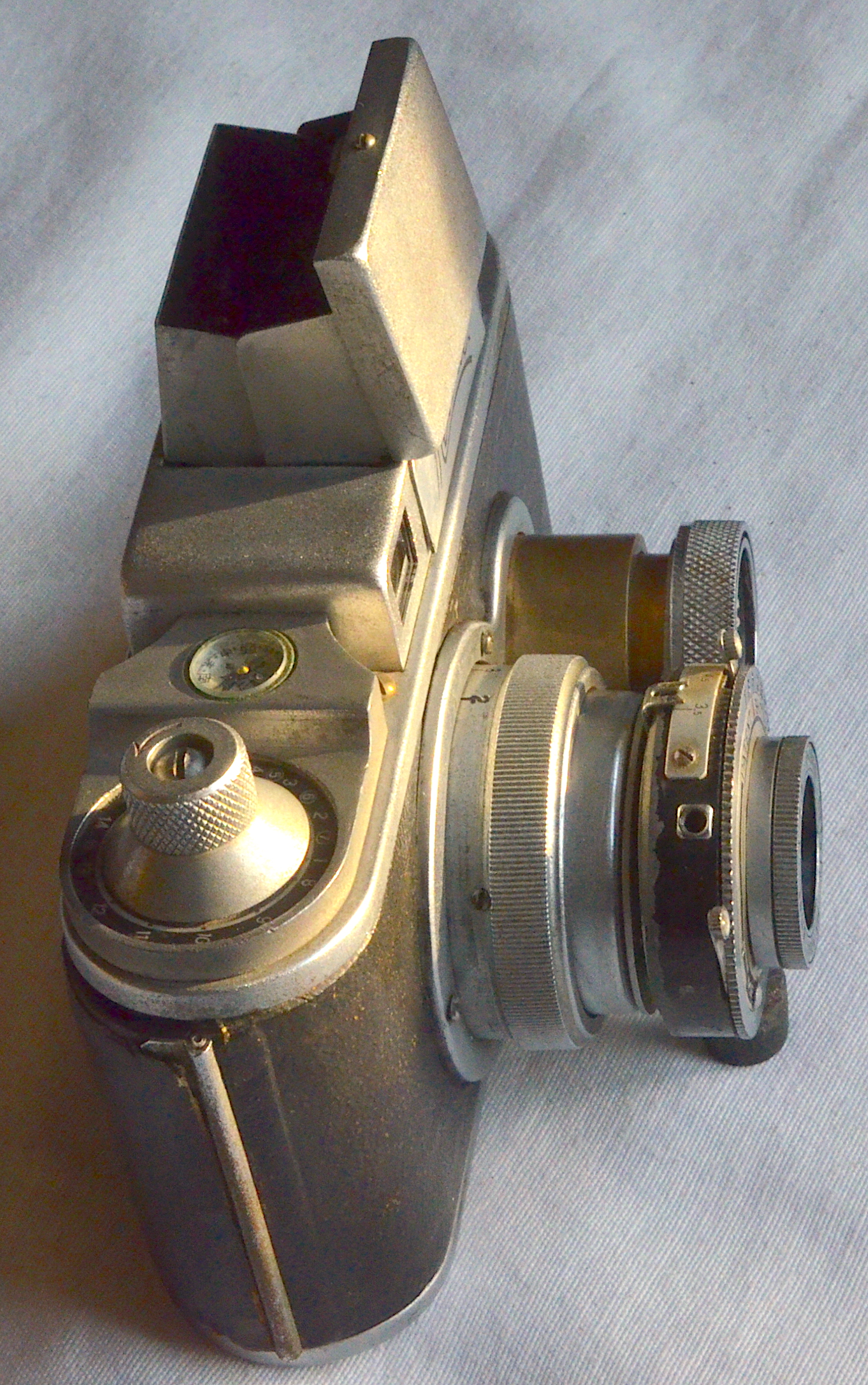

Meikai Ref with Compass 1 Meikai Ref with Compass 2 Meikai Ref with Compass 3 Meikai Ref with Compass 4 Meikai Ref with Compass 5 Meikai Ref with Compass 6 Meikai Ref with Compass 7 Meikai Ref with Compass 8
